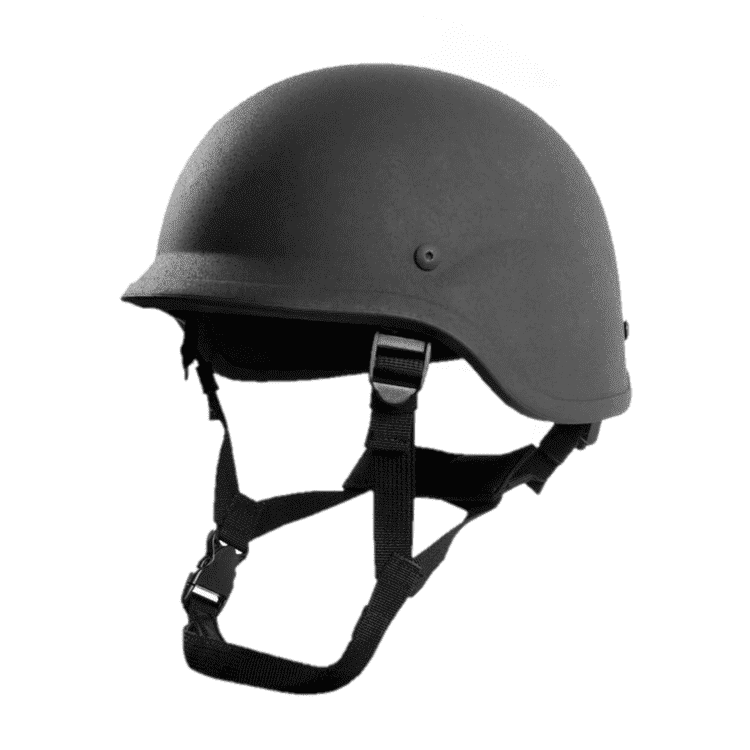

The PGD-PASGT ballistic helmet is designed to be comfortable to wear and at the same time, it is low cut, so it provides maximum protection against fragments and shots.
The helmet stops up to a .44 Magnum and .357 SIG according to NIJ standard 0101.06 and is further V50 tested to 660 m/s according to STANAG 2920 against fragments.
The design reduces the effect of a projectile by up to 50%. A standard military helmet is affected by a 130mm area around the stop when it stops a projectile or fragment. Our PASGT military helmet is only affected in an area up to 75 mm. around the impact. That difference greatly increases the chance of surviving the trauma from a shot. The less your head is affected by a shot the better. A PASGT helmet reduces depth by up to 50% (according to HPW-TP-0401.01B IIIA).
FEATURES:
- Better unobstructed view and increased hearing capability compared to mich 2000 helmet
- Maximum Comfort Impact Protection 7-pad (MCIP 7) suspension system
- Quick release for easy-on, easy-off use with no interference when sighting the weapon for target acquisition
- Configurable platform Standards
- Meets or exceeds NIJ Level IIIA ballistic standard for penetration
- Meets a minimum of 650 m/s V-50 for 22 calibers 17 grains (1.1 gram) FSP when tested according to STANAG 2920
- Rail system
- Hook and loop appliqué
- Cam-FitTM retention system
- H-Back retention system
BALLISTIC PERFORMANCE
- NIJ Level IIIA (according to NIJ STD 0106.01 / 0108.01) (Tested 9mm, 357, and .44 magnum).
IMPACT PERFORMANCE
- (ACH Specification CO/PD-05-04): <150Gs
FRAGMENT PERFORMANCE
- Fragment Performance: 17gr V50 ≥ 2400 ft/sec (731 m/s)
BLUNT IMPACT PERFORMANCE
- Exceeds current ACH Blunt Impact Protection requirements (per AR/PD 10-02)
NIJ LEVEL IIIA TEST RESULTS
All Tophelmetfan helmets are tested to NIJ IIIA standards. And because we take your protection seriously, we do our own testing too. Every helmet from every batch is hand inspected for quality, and a random helmet is selected for field testing. If we wouldn't trust it, we won't sell it.
