NIJ Level III Body Armor 1000D Bulletproof Tactical Vest

I. About the Product

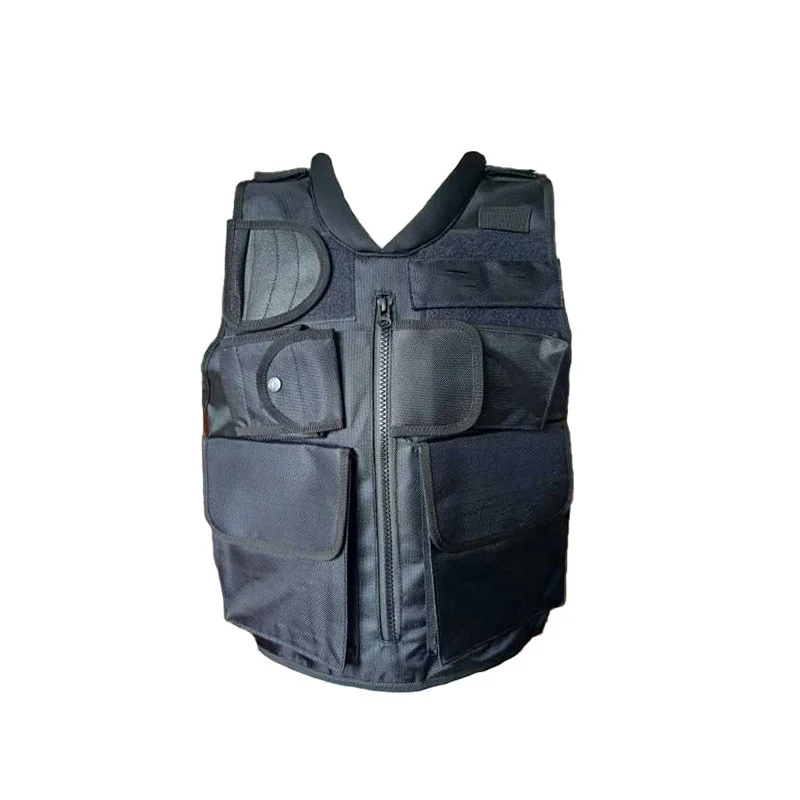

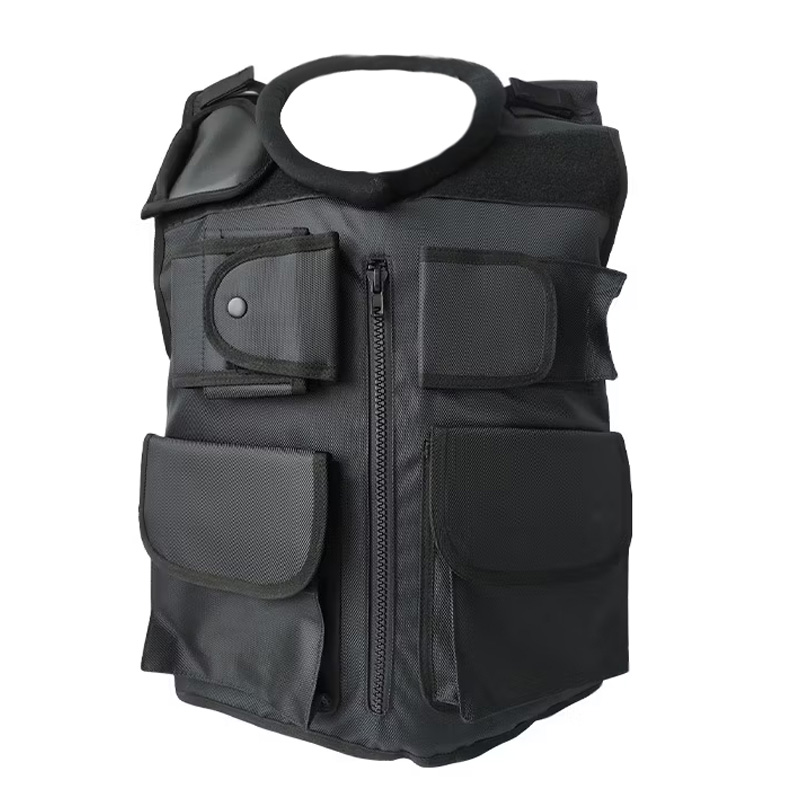

The nylon 1000D cow tendon cloth consists of the vest body and the parts fixed or combined on it. The mesh tactical vest body is a three-layer mesh structure. The front piece is sewn with two shoulder straps, a walkie-talkie strap, a handcuff bag, a horizontal bag, a left magazine bag, and a right magazine bag; the butt pad is fixed with a hanging piece and brocade buckle.

• Material: 45 layers of polyethylene fiber
• Size: One size fits all, adjustable shoulder and waist size
• Colour: Black
• Bulletproof rating: NIJ III
• Protection area: 0.25 square meters

II. Product structure

• It consists of the main body of the vest and its fixed or combined parts.
• The main body of the oxford fabric tactical vest is a three-layer structure, with upper and lower fabrics and linings.
• The front panel is sewn with two shoulder loops, intercom loops, handcuff pockets, lateral pockets, left magazine pockets, right magazine pockets; butt pads are fixed with hanging loops and thread buttons.
• Protective layer structure: The protective layer structure of the bulletproof stab-proof clothing is composed of 45 layers of polyethylene fiber non-weft cloth (four layers orthogonal) + 1 layer of 4.5mm thick foam.
• Composition: The bulletproof stab-proof clothing consists of a jacket, a bulletproof layer and a protective cover for the bulletproof layer. The jacket is removable and washable, and the shoulder and waist are adjustable.

III. Product performance

• Sleeve sealing performance: The protective layer is sealed with an anti-seepage and anti-seepage black protective sleeve, and the sealing edge is uniform. The protective cover material is impermeable to water, and the anti-hydrostatic pressure is not less than 18kPa.
• Wearing flexibility: flexible wearing, easy to put on and take off. After wearing, the free movement of the arm and the human body's kneeling, jumping, running, pitching, turning and other movements should not be significantly restricted.
• Ballistic resistance at room temperature: Tested using 1979 7.62mm and 1951 7.62mm. Maximum groove depth should be less than or equal to 25mm for effective hitting, blocking.
• Immersion bulletproof: At room temperature, soak the bulletproof stab-proof suit in water for 30 minutes, and then conduct the bulletproof test. In the case of effective blows, to withstand bullets, the maximum concave depth of the backing should be less than or equal to 25mm.
• High temperature ballistic performance: After high temperature test (+55℃±2℃, constant temperature for 4h), test the ballistic performance within 15min. In the case of an effective hit, the warhead is blocked, and the maximum subsidence depth of the backing is less than or equal to 25min.
• Low temperature ballistic performance: After the low temperature test (-20℃±2℃, constant temperature for 4h), the ballistic performance test is carried out within 15min. In the case of an effective hit, the bullet is blocked, and the maximum sag depth of the backing is ≤25min.
• Bulletproof damp heat performance: After the damp heat test (70℃±2℃, 80% relative humidity, 240h), the bulletproof performance test is carried out. In the case of effective hitting, the bullet is blocked, and the maximum sinking backing depth is less than or equal to 25min.

IV.NIJ Ballistic Test Report
All Tophelmetfan body armor and vests must pass the NIJ ballistic test before they are sold on the market. They are essential tactical equipment for soldiers and police.

IV. HOW TO CHOOSE THE CORRECT SIZE OF YOUR BODY ARMOR
